Size
1200mm (W) x 780mm (D) x 920mm (H)
1250mm (W) x 780mm (D) x 900mm (H)

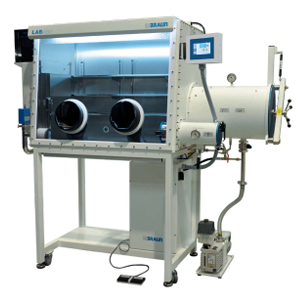

Glovebox Specification
• Stainless steel 1.4301 (US Type 304) construction
•(2/3/4) DN 40 KF feedthroughs included (1) electrical
• Fine filter (1) gas inlet, (1) gas outlet, class H13
• Scratch resistant polycarbonate window
• 0.4mm Glovebox gloves (optional glove sizes and material are available)
• POM 220mm diameter glove ports
• Fluorescent front mounted lamp
• Adjustable stainless steel shelving (mini 1000mm (W) x 220mm (D))
• Leak rate <0.05 vol%h (acc. ISO 10648-2)
• Weight 325/425 kg
Large Antechamber Specification
• Cylindrical design w/ stainless steel sliding tray
• Antechamber size 390mm diameter x 600mm length
• Stainless steel 1.4301 (US Type 304) construction
• Aluminum doors opening in vertical direction (gas piston)
• Manual vacuum operation (optional automatic available)
• Leak rate <10-5 mbar l/s MB-10-G Compact Gas Purification Specification
• Single column gas purifier unit
• Attainable purity level H2O < 1 ppm, O2 < 1 ppm
• Rotary vane pump
• Electro-pneumatic valves
• Auto regeneration
• Stainless steel 1.4301 (US Type 304) piping
Controller Specification
• PLC-M. Braun controller
• Automatic box pressure control w/ foot switch (+15 mbar, -15 mbar)
